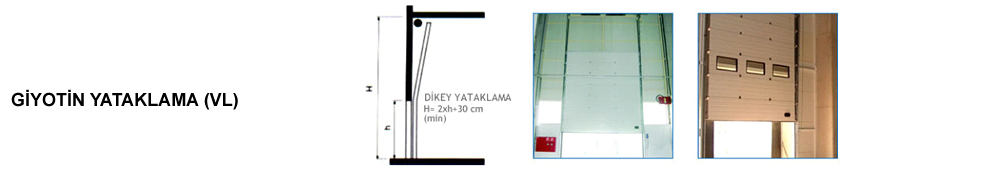

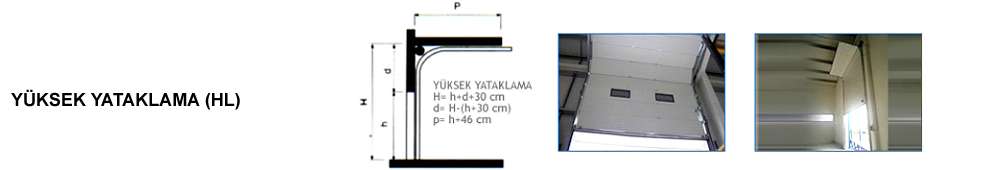

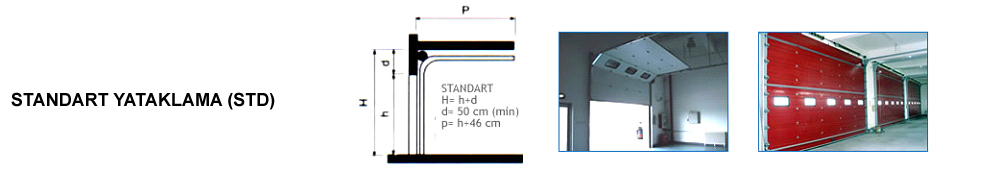

It has 3 mounting types in industrial factory and warehouse doors. With the standard bearing, high bearing and guillotine sectional door system, the expectations for all modern factory doors drive systems have been intelligently and conceptually adapted to meet all future demands.
Sectional door systems can also provide solutions for various projects for industrial needs. It is equipped with various power options and various expansion options compared to various sectional doors. Sectional panel doors are extremely comfortable and digital. Industrial sectional doors can serve you for years, providing excellent functionality with the highest safety and optimized quality
Manufactured in accordance with the latest norms, factory and warehouse doors are equipped with leading technologies

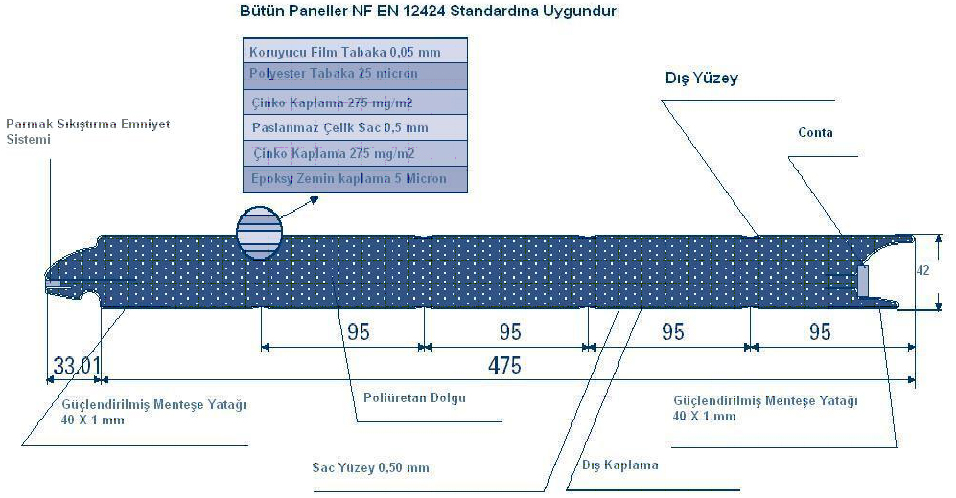

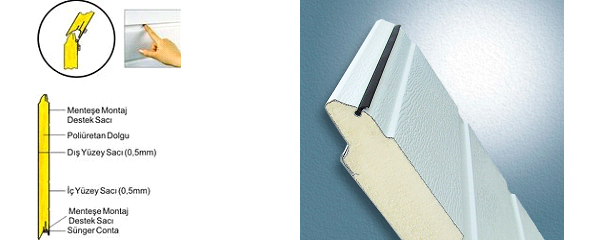

Panel Specifications
| Panel | : | Sandwich Panel-Metecno ITALY |
| Panel Thickness | : | 42mm ( 0,50mm Galvanised steel + Polyurethane + 0,50 mm Galvanised steel ) + Entkepler(Galvanise) |
| Filling Material | : | Polyurethane foam(45 KG/M3 Density) |
| Sealing Between Panels | : | Foam seal between sandwich panels |
| Panel- Floor Sealing | : | 3 cm corrugated rubber seal |
| Heat Permeability | : | 0,50 Wt/mt C |
| Wind Resistance | : | Class 2 (DIN EN 12424) |
| Fire Resistance | : | Class B (DIN 4102) |

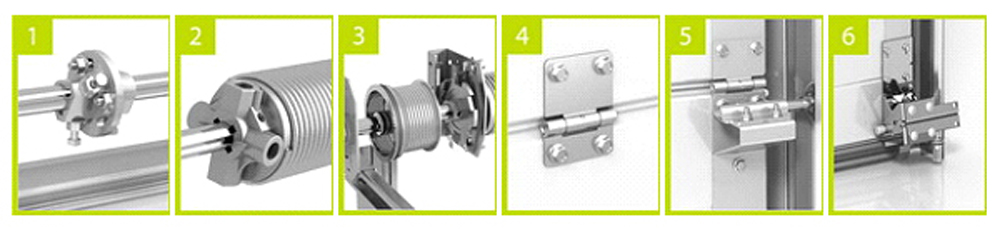

Hardware (Mekanik Part) Technical Specifications
| Origin | : | Flexi Force – Hollanda |
| Springs | : | DIN 17223 Steel standart |
| Hinges and Rails | : | 3 mm Galvanised Steel |
Security
| Pneumatic | : | Shineder Buttom Seal Pneumatic Security System (Standart) |
| Photocell | : | Security Photocell with infrared principle |
| Rope Breaking and Spring Breaking | : | Prevents the door from falling down or breaking the springs in case of mechanical failures (Standart) |
Engine and Electronic Components
| Origin | : | İtalya |
| Model | : | Industrial Motor with Nice Control Unit |
| Torc (NM) | : | 140 |
| Motor Output Power | : | 550 |
| Working Voltage | : | 400/3 |
| Protection Class | : | IP55 |
| Continuous Duty | : | %70 |
| Motor Panel Security | : | Thermal Protection, Phase Protection Relay, Control Unit Electronic Switch, Digital |
Sectional Door Lifts

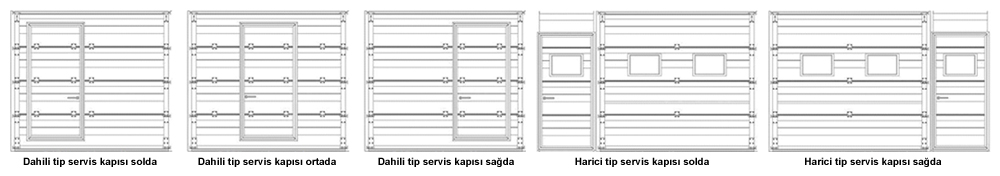

Service Door (Staff Entrance Door)
